Shimano 105 ST-R7020 11 Speed Shifter With BR-R7070 Caliper

Employing the latest technologies from Dura Ace R9100 and Ultegra road components, the Shimano 105 R7000 series delivers added versatility and improved ride performance for a wide spectrum or road cyclists.

Featuring refined ergonomics, the shift levers match the slim look and feel of their Ultegra counterpart while the addition of the medium rear derailleur and 11-34T cassette expand gear ranges. Highlight of the new 105 is the addition of hydraulic disc brakes with Shimano’s leading disc-specific features to the series lineup. The Flat Mount calipers are compatible with Ice Technologies pads and rotors beginning with a 140 mm diameter to offer the most capable Shimano 105 group ever.

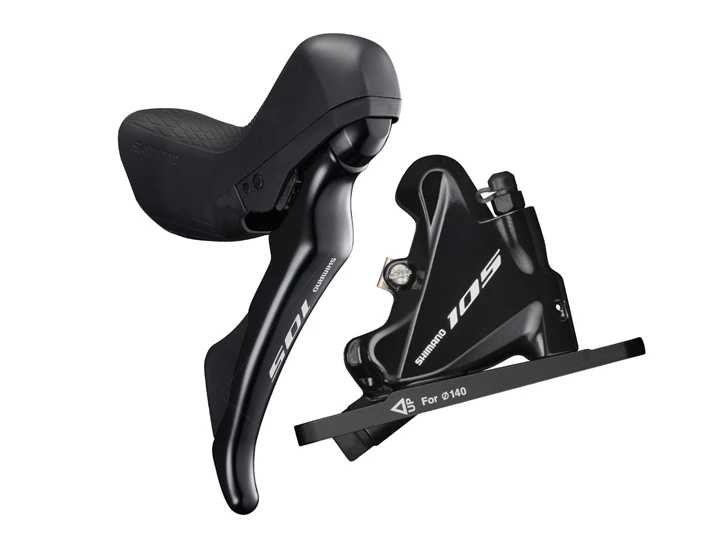

105 shift and brake set consisting of the ST-R7020 dual control lever for excellent handling and the hydraulic BR-R7070 caliper for extraordinary braking power.

Features

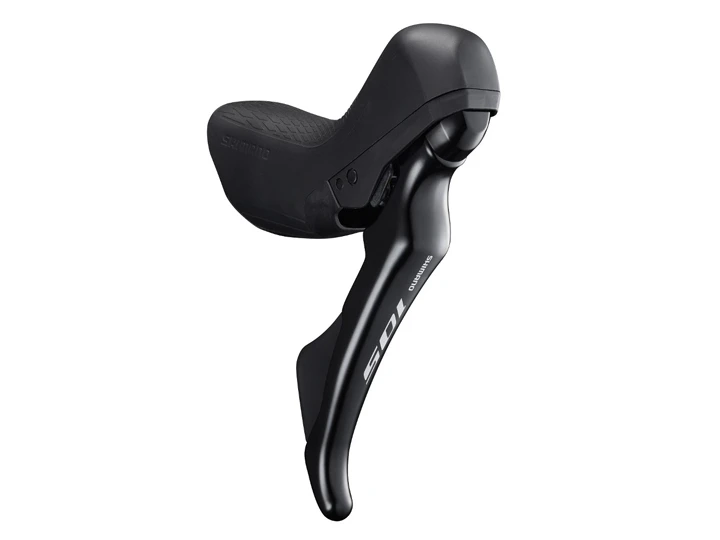

Shimano 105 ST-R7020 dual control lever – The Shimano 105 ST-R7020 dual control lever features a redesigned internal shift unit for a slimmer, more ergonomically shaped control lever that matches the design of Ultegra R8000. Increased reach adjustment of up to 15 mm provides more control and reliable brake performance in all conditions. Compared to the ST-R7025 levers the reach starts 4 mm further off for riders with larger hands.

Shimano 105 BR-R7070 hydraulic Flat Mount caliper – Utilizing the proprietary lightweight and sleek Flat Mount design, the hydraulic Shimano BR-R7070 disc brake caliper features premium stopping power and aerodynamics for road applications. In combination with the SM-RT70 rotor (sold separately) which offers the Ice Technolgies construction an excellent heat management for confident performance on the longest descents is guaranteed.

Specifications

Front and Rear

Material: lever, caliper: aluminium (painted)

bracket: engineering composite

shift lever body: resin, steel

Bar diameter: 23.8 – 24.2 mm

Brake Hose: SM-BH90-JK-SS (included), SM-BH90-J-SSR, SM-BH90-JK-SSR (optional)

Brake Pads: L02A-R Resin (included), K02S-R Resin, K04S-M Metal, L04C-M Metal (optional)

Recommended Brake Disc: SM-RT70 (not included, optional)

Brake Fluid: Shimano mineral oil

What’s in the Box?

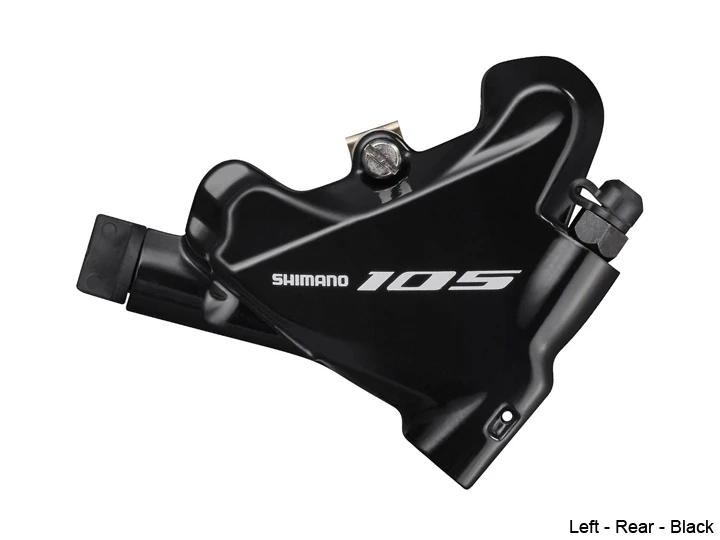

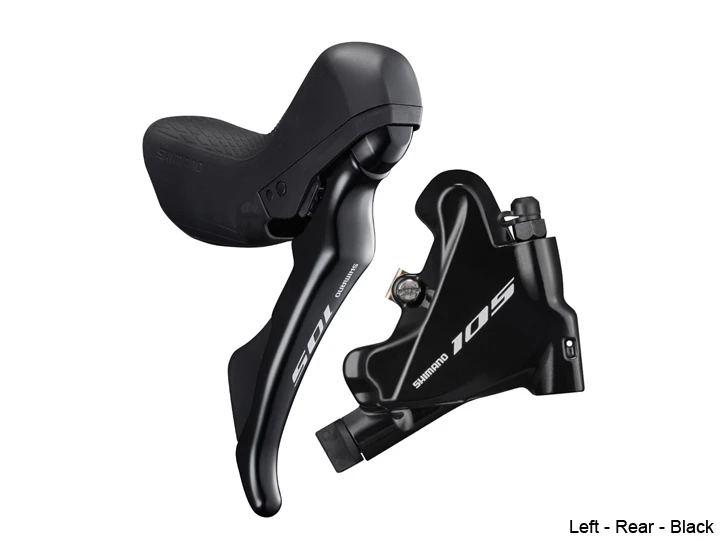

Left – Rear – Black

Left STI lever + front caliper, incl. FW adapter

Filled and bleed,

incl. cable, OT-SP41 hose, SM-BH90-JK-SS brake cable and L02A Resin brake pads with cooling fins

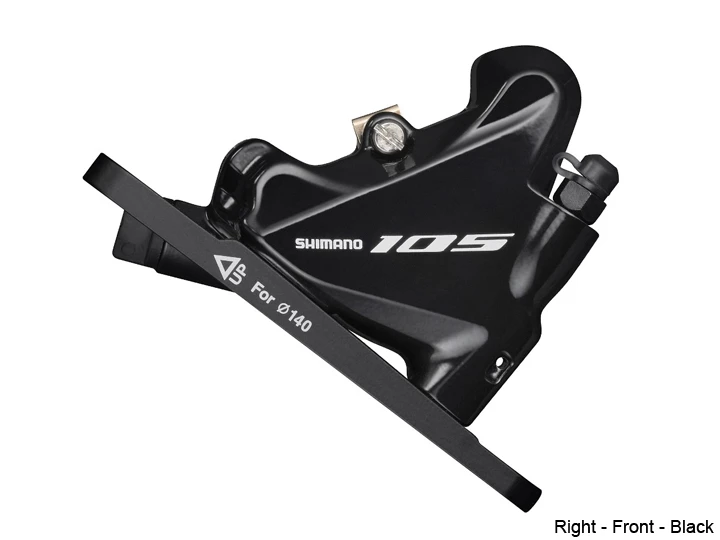

Right – Front – Black

Right STI levers + rear caliper

Filled and bleed,

incl. cable, OT-SP41 hose, SM-BH90-JK-SS brake cable and L02A Resin brake pads with cooling fins
