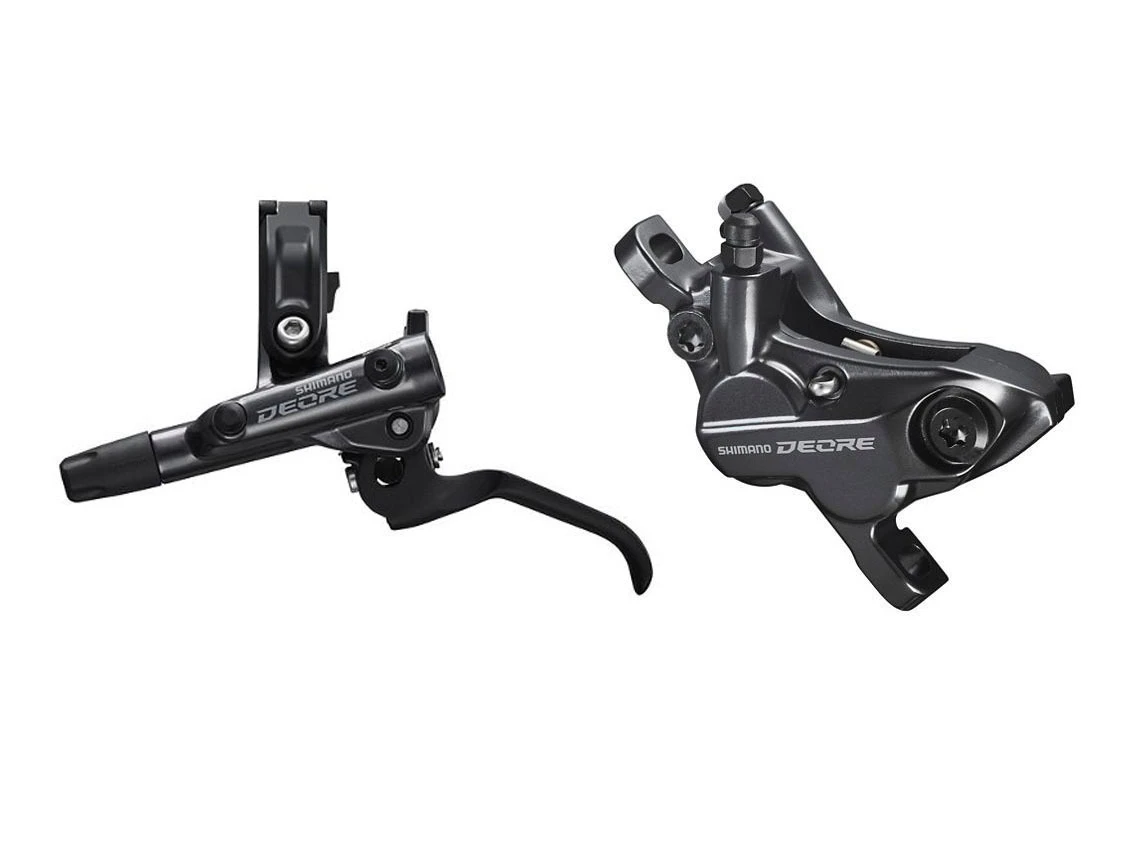

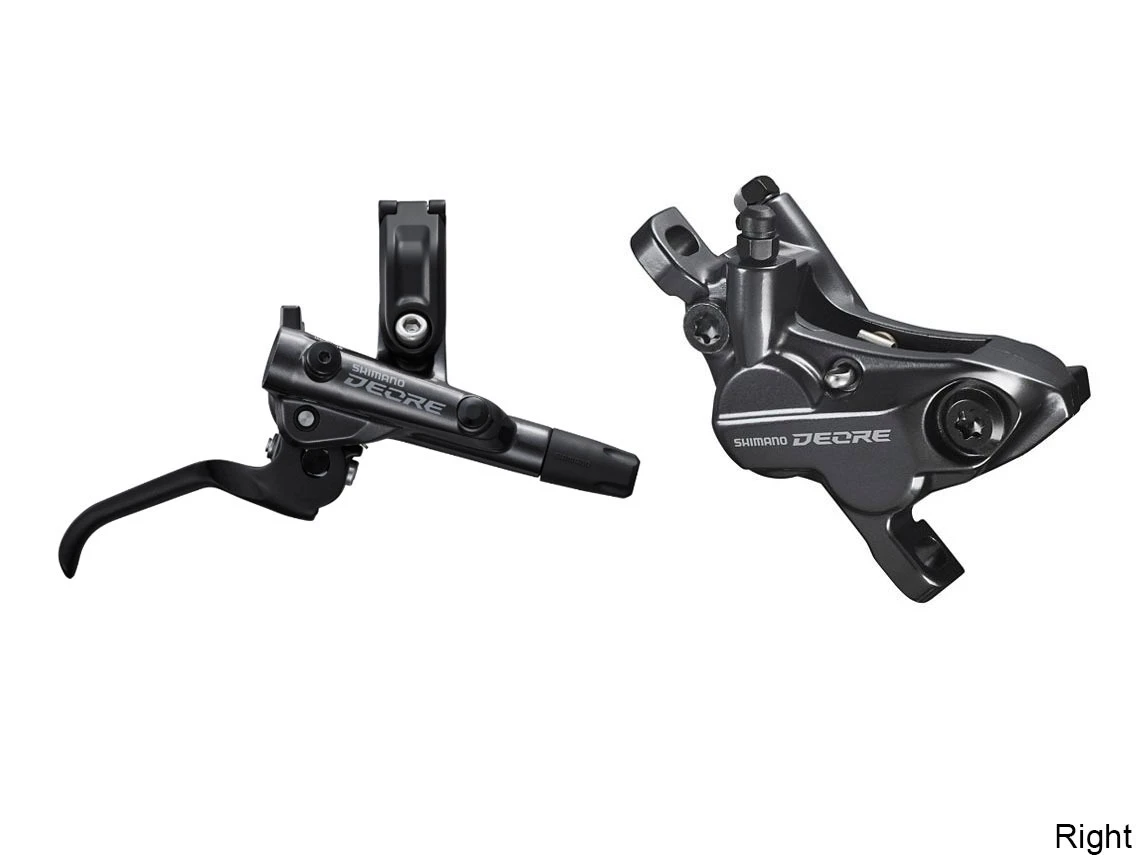

Shimano Deore BL-M6100 Brake Lever With J-Kit BR-M6120 Caliper

Shimano Deore – Hydraulic Disc Brake Lever – I-Spec EV

With quicker brake engagement and shorter free stroke, the Shimano Deore BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-Spec EV shift lever offers a wider adjustment range for superior rider tuning.

Shimano Deore Hydraulic Disc Brake Caliper 4-piston

The Shimano Deore M6120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.

Technologies

Shifter

Servo Wave Action – When you pull a ServoWave brake lever, initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact so more of the lever stroke is used to apply greater braking power with improved control.

iSpecEV – I-Spec EV creates a clean and action-optimised cockpit that provides greater focus and flexibility for a wider range of riders.

Caliper

Four Piston – Disc brake system with the dual diameter opposed-piston caliper design has differently sized pistons in front and in the rear. The system adopts a power transfer system in which the disc brake rotor is pressed by the smaller sized piston at the entrance of the disc brake rotor intake and also by the more powerful larger sized piston at the back. This prevents the wobbling motion of the disc brake rotor and reduces noises significantly.
The 4-piston caliper also allows a wider contact area for the disc brake rotor while keeping the size compact, and the efficient location of pads is adjusted as necessary to stabilize the pressure. In combination use with the ServoWave lever it provides an incredible 50% more stopping power than the previous model. The advanced Saint/Zee disc brake system, which adjusts to accommodate the different braking styles of different riders, offers stable braking power and excellent modulation.

Ice Technologies – The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice Technologies disc brake rotor and Ice Technologies pad to realise the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving from 400˚C to 300˚C surface temperature. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

One Way Bleeding – was developed for quick and easy prevention of air in their hydraulic system. They have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.
One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features

Shifters

Intuitive and powerful braking

• Quicker brake engagement with shorter free stroke
• Rider tunable and action-optimized cockpit

High-performance brake control

• Additional contact point for a stiffer brake lever

10 deg. rotation angle setting range for I-SPEC EV shifting lever

Caliper

Superior modulation gives you the power you need

• Quick piston retraction
• High power 4-piston disc brake caliper
