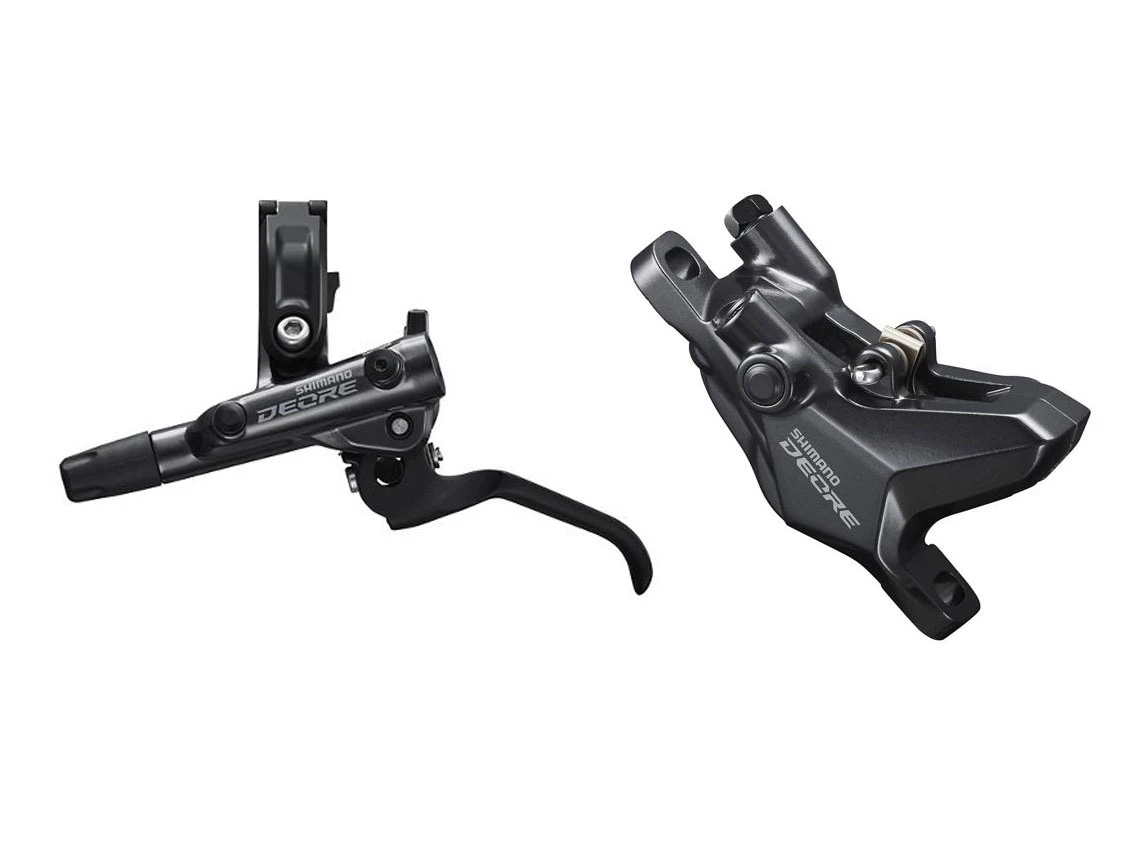

Shimano Deore BR-M6100 12 Speed Hydraulic Brake Lever + Caliper (J

Shimano Deore – Hydraulic Disc Brake Lever – I-Spec EV

With quicker brake engagement and shorter free stroke, the Shimano Deore BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-Spec EV shift lever offers a wider adjustment range for superior rider tuning.

Shimano Deore Hydraulic Disc Brake Caliper 2-piston

The Shimano Deore M6100 caliper features lightweight braking performance and reliable stopping power in all conditions.

Technologies

Shifter – Shimano Deore BL-M6100 12 Speed Shifter

Servo Wave Action – When you pull a ServoWave brake lever, initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact so more of the lever stroke is used to apply greater braking power with improved control.

iSpecEV – I-Spec EV creates a clean and action-optimised cockpit that provides greater focus and flexibility for a wider range of riders.

Caliper – Shimano Deore BR-M6100 Hydraulic Disc Caliper (J-Kit)

Ice Technologies – The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice Technologies disc brake rotor and Ice Technologies pad to realise the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving from 400˚C to 300˚C surface temperature. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

J-Kit – J-Kit is a simple hose connection system for hydraulic brakes on internally routed hoses so that you can install your brake quickly and easily. The brake hose does not come connected to the brake to facilitate the routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during assembly to allow oil to flow.

One Way Bleeding – was developed for quick and easy prevention of air in their hydraulic system. They have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.
One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features

Shifters

Intuitive and powerful braking

• Quicker brake engagement with shorter free stroke
• Rider tunable and action-optimized cockpit

High-performance brake control

• Additional contact point for a stiffer brake lever

10 deg. rotation angle setting range for I-SPEC EV shifting lever

Caliper

Superior modulation gives you the power you need at low weight

• Quick piston retraction
• Lightweight 2-piston disc brake caliper
