Shimano XTR BL-M9100 12 Speed Disc Brake Lever + Caliper J Kit

Shimano XTR M9100 – Back to where it all started.
The Shimano XTR M9100 group was developed to meet the demands of mountainbike racers at the highest level and guarantees “second to none” performance. The range offers the most versatile components for XC, Enduro and Marathon races.

It all started with the search for the ultimate MTB racing components and now the XTR continues 27 years of innovation with even more speed, focus and control. It is jam-packed with the technological advantages needed to push the boundaries of today’s insanely demanding courses. It is lighter, smoother, more durable and versatile to transfer all pedal-pounding watts into ground speed with extreme efficiency.

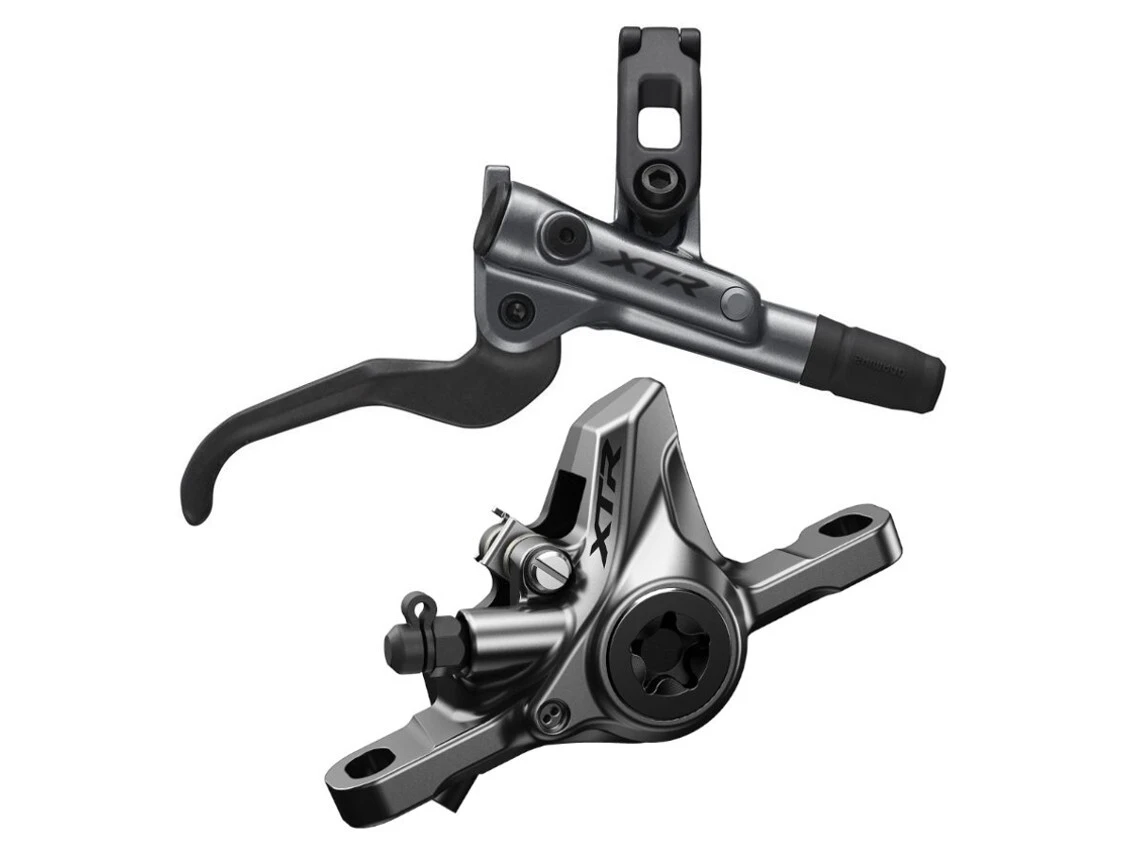

Shimano XTR M9100 Cross Country brake set consisting of the ergonomic BL-M9100 brake lever and the powerful BR-M9100 2-piston caliper. Trouble-free maintenance is provided by the proven One Way Bleeding concept and the Easy Hose Joint System which simplifies brake hose exchanges

Features
XTR BL-M9100
Quicker rebound between actions maintains rider concentration
Greater flexibility and action-optimized cockpit layout
Update brake lever shape
10% stiffer than M9000 even under high temp conditions
Magnesium master cylinder
26g lighter (vs. BL/BR-M9000 with disc brake rotor)
XTR BR-M9100
Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
New high rigidity brake hose and 1-piece aluminum caliper
26g lighter (vs. BL/BR-M9000 with disc brake rotor)

J-Kit (Easy Hose Joint System)
At brake systems with J-Kit hose joint the brake lever features an integrated olive what makes an easy brake hose installation and removal possible.

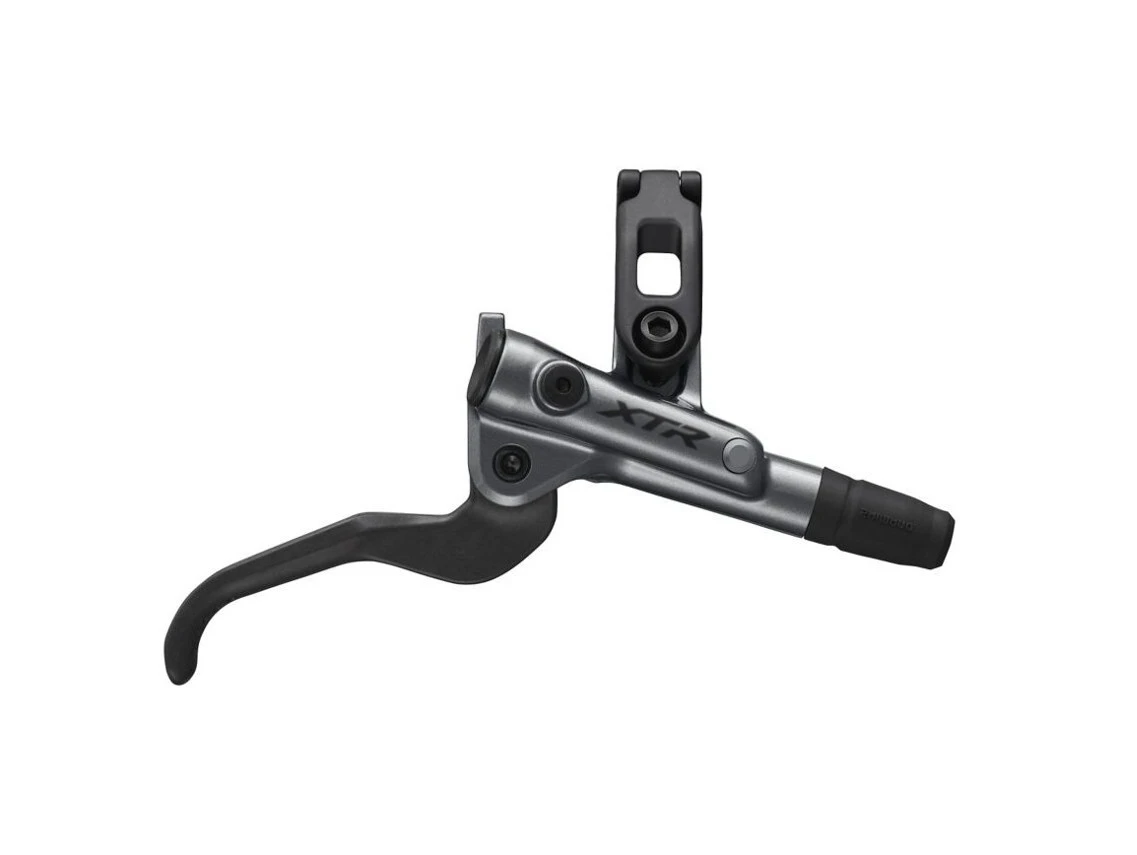

Shimano XTR BL-M9100 brake lever
The Shimano engineers have redesigned the XTR M9100 brake levers from a braking system that had been already the benchmark among mountainbike braking systems. For the BL-M9100 levers both the clamp and the lever body itself have been modified. The clamp moves further into the middle of the lever and is angled. This cleverly supports the outer end of the expansion tank directly on the handlebars and creates an additional counter bearing for lever actuation.

This significantly increases stiffness and stability, what ultimately leads to an even more direct brake feeling and improved control. So the BL-M9100 is 10 % stiffer than its predecessor, too. Of course, the reach of the lightweight XC brake lever with a magnesium housing is individually adjustable. Thanks to the I-Spec EV design the XTR SL-M9100-I shifting levers can be mounted directly to the brake leve

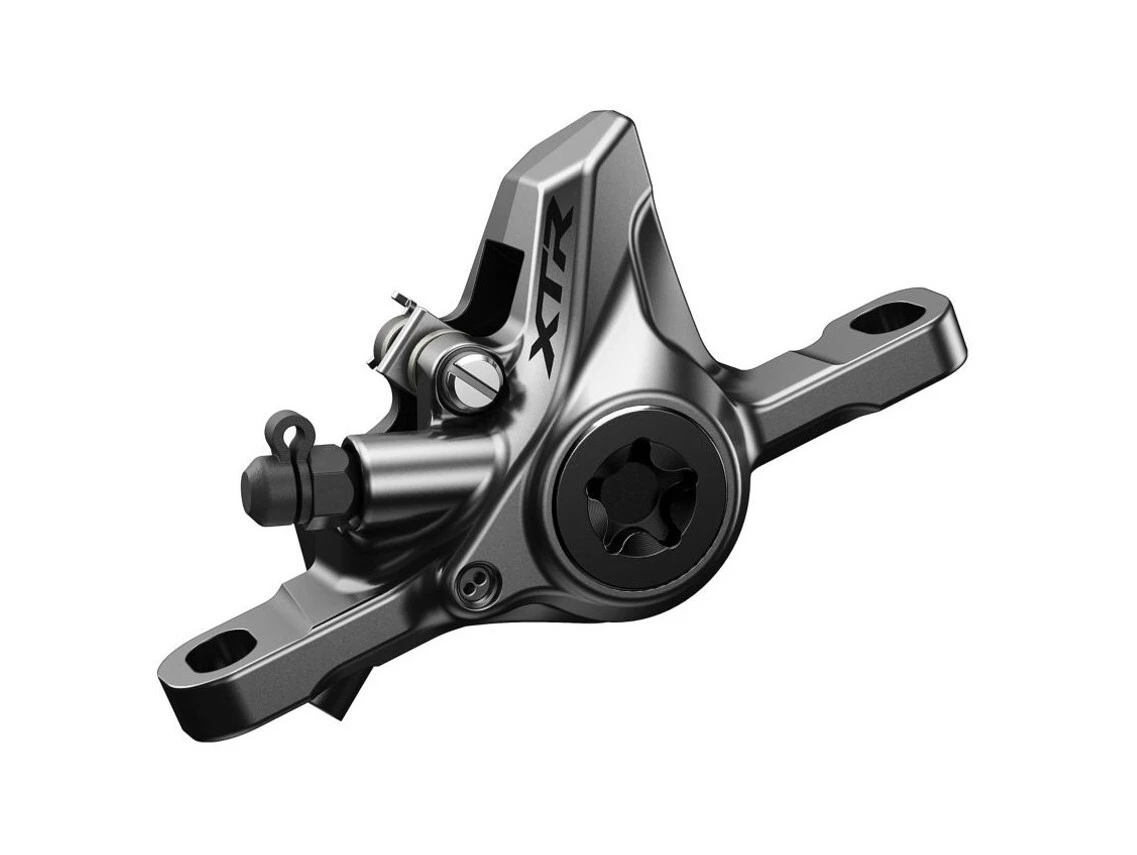

Shimano XTR BR-M9100 disc brake caliper
The Shimano XTR BR-M9100 brake caliper has a one-piece aluminium construction and ensures significantly faster response and less free travel of the entire brake system when combined with the highly rigid braking cables. The K02Ti Resin brake pads with titanium carrier plates or the K04S Metal brake pads in combination with the 2-piston caliper guarantee extremely good deceleration and low weight at the same time
