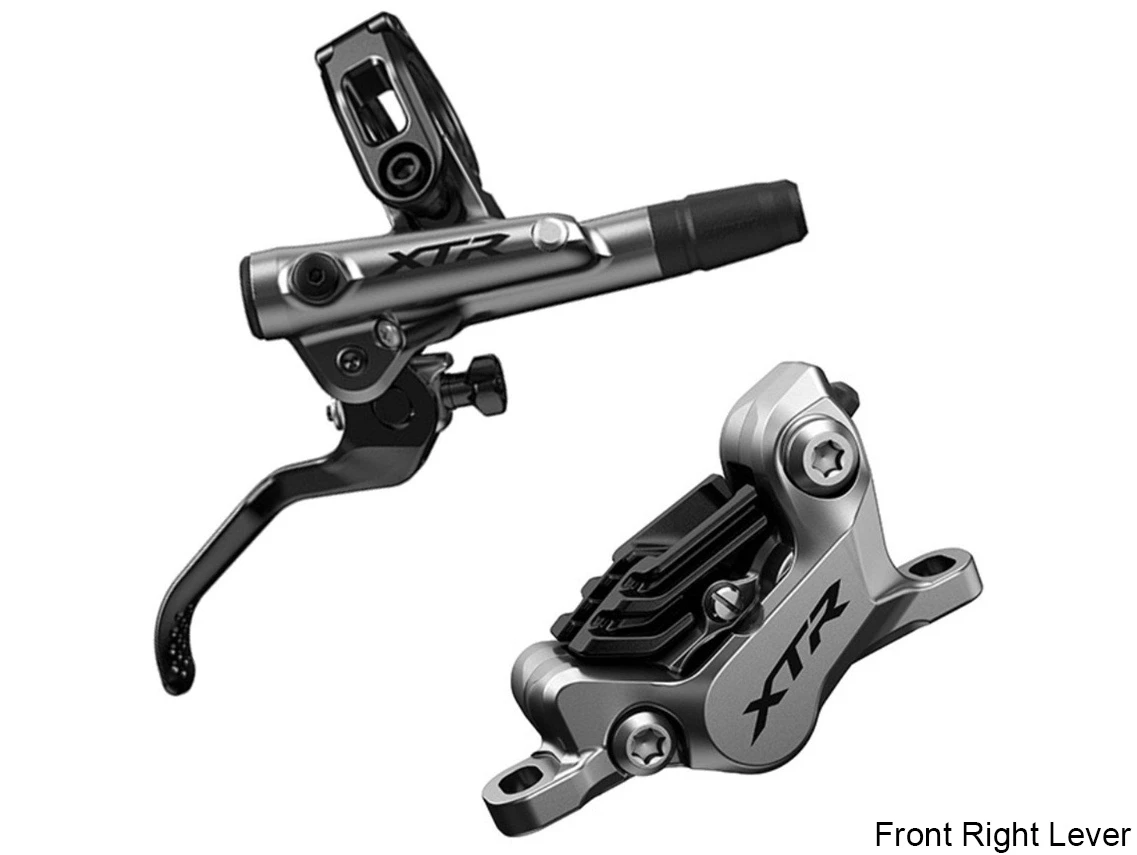

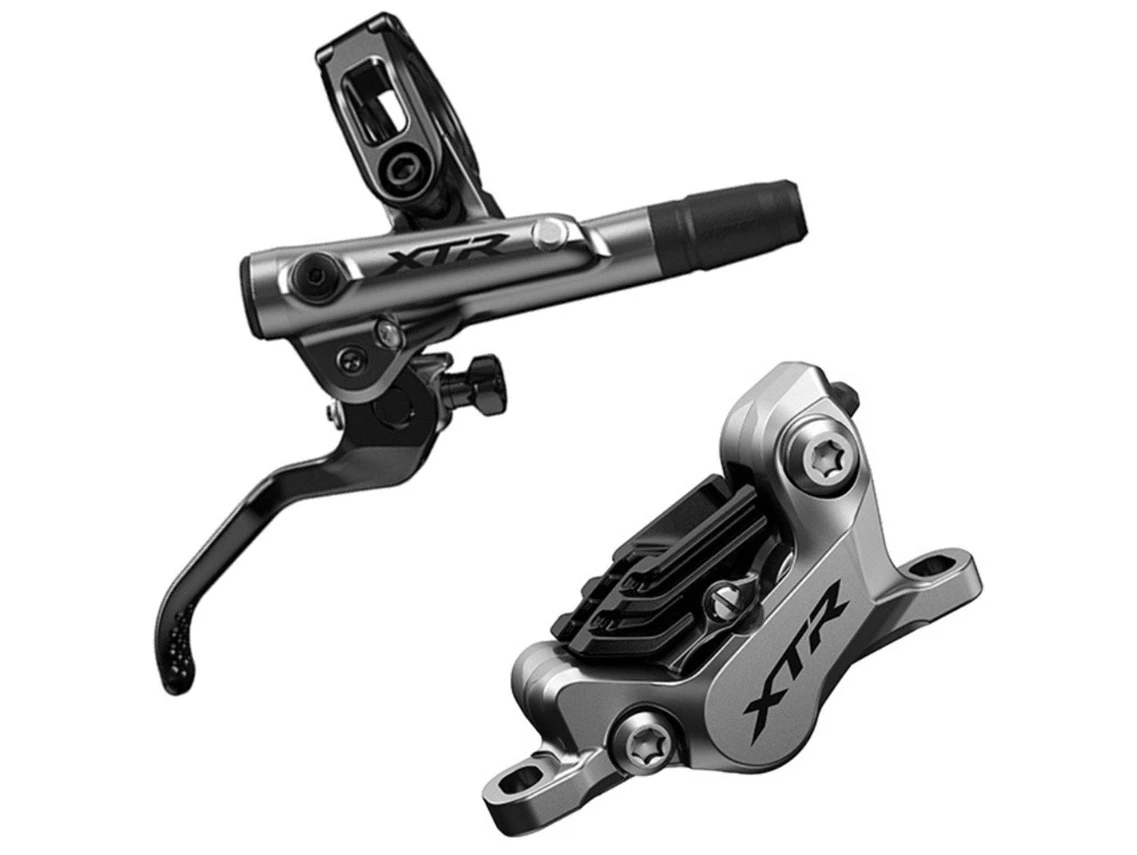

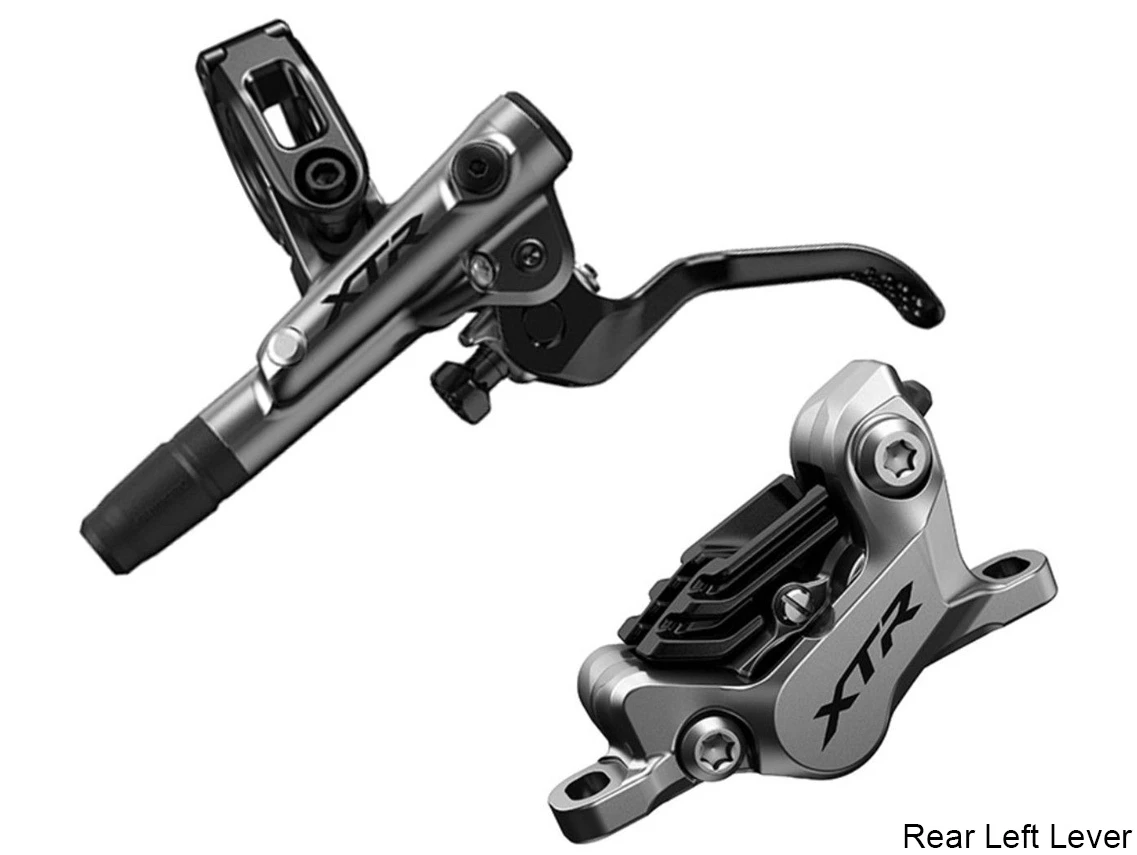

Shimano XTR M9120 Disc Brake Trail Lever + Caliper
Original price was: $358.99.$98.99Current price is: $98.99.
- 100% environmentally friendly material
- Protecting Your Payment Information
- Unbeatable Quality Guaranteed
- Online customer care, always here for you.
With 27 years of development, Shimano introduces the latest version of the ultimate MTB race components XTR.
Designed to meet the most competitive mountain bike racing needs with second-to-none performance. The new XTR M9100 Series brings the most versatile groupset for XC, enduro and marathon racing.
Features

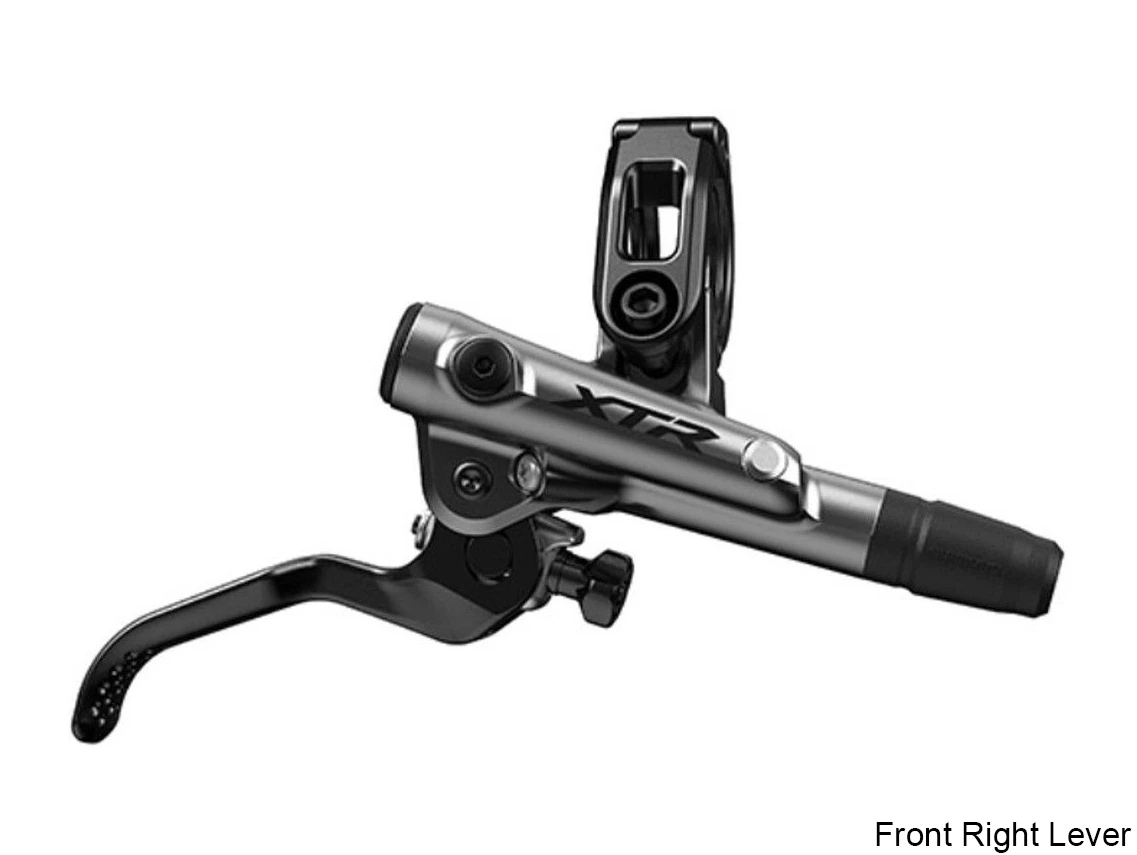

Hydraulic Disc Brake Lever
Quicker rebound between actions maintains rider concentration
Greater flexibility and action-optimised cockpit layout
Update brake lever shape
8% stiffer than M9000 even under high temp conditions
Seamless operation
High rigidity
Quicker brake engagement with shorter free stroke
Free stroke adjust
Funnel bleeding
J-kit option available (not included)
Servo wave mechanism

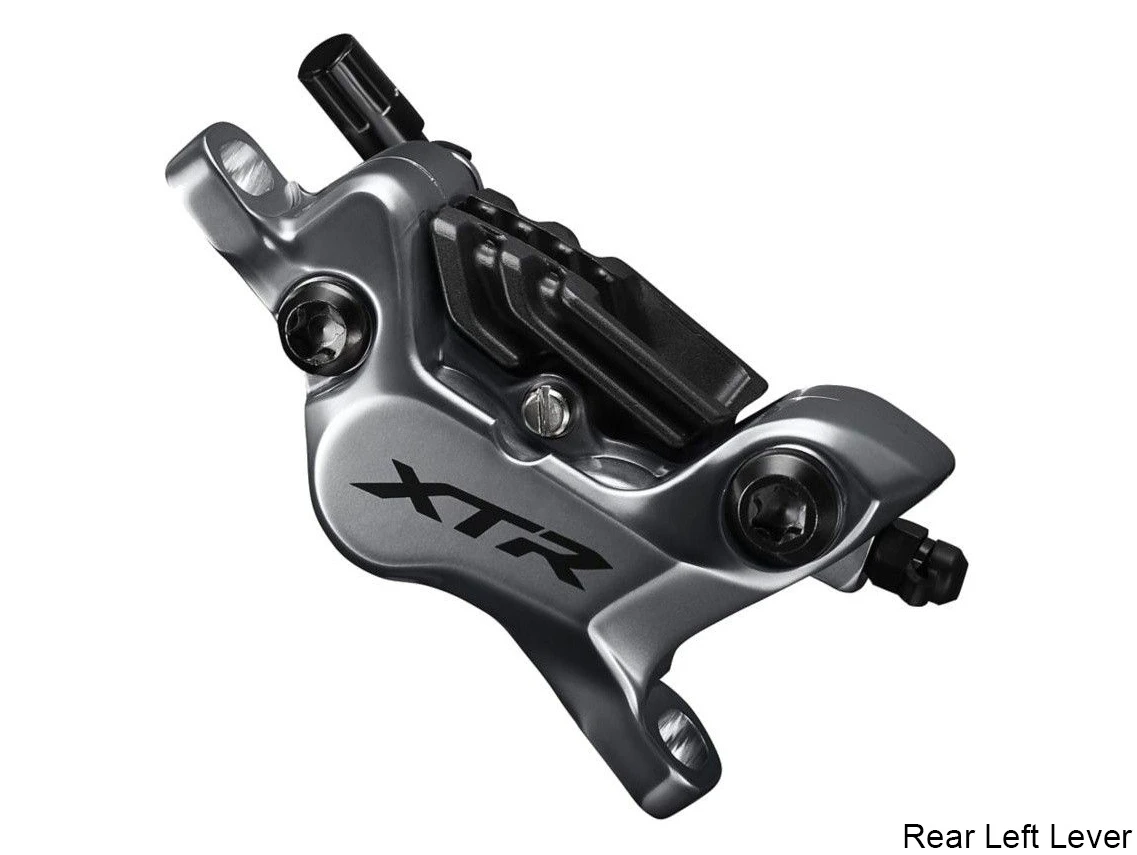

Hydraulic Disc Brake 4-piston Caliper
Higher braking force with reduced input force at fingertips highly linear response
10% braking power up (vs. M9020)
High-performance brake control
High power
Banjo type connection and inside hose routing
One-way bleeding
Specifications
| Â | Hydraulic Disc Brake Lever | Hydraulic Disc Brake 4-piston Caliper |
|---|---|---|
| Average weight | 385 g (Lever only) | 385 g |
| Brake hose (Kit) | SM-BH90-SBM | – |
| Brake hose colour (Kit) | Black | Black |
| Brake Type | Hydraulic disc brake | Hydraulic disc brake |
| Clamp band | Open clamp band | – |
| Compatible shifting lever mount | I-SPEC EV | – |
| Compatible shifting lever mount: | Clamp band | – |
| Caliper fixing bolt – Anti loosen method | – | Wiring |
| Caliper fixing bolt – Tool size | – | 4mm |
| Caliper | – | Mono-body |
| Hose joint | Straight | Janjo |
| Lever size (Finger) | 2 | – |
| Oil | SHIMANO Mineral | SHIMANO Mineral |
| Reach adjust method | Toolless | Â |
| Recommended brake caliper | BR-M9120 | – |
| Pad | – | Standard – N03A Resin pad w/ radiator fin |
| Pad Mount | – | Pad axle |
| Piston | – | 4 |
| Recommended brake lever | – | BL-M9120 |
| Size | Left Lever, Right Lever |
|---|---|
| Item Type | Front, Rear |
