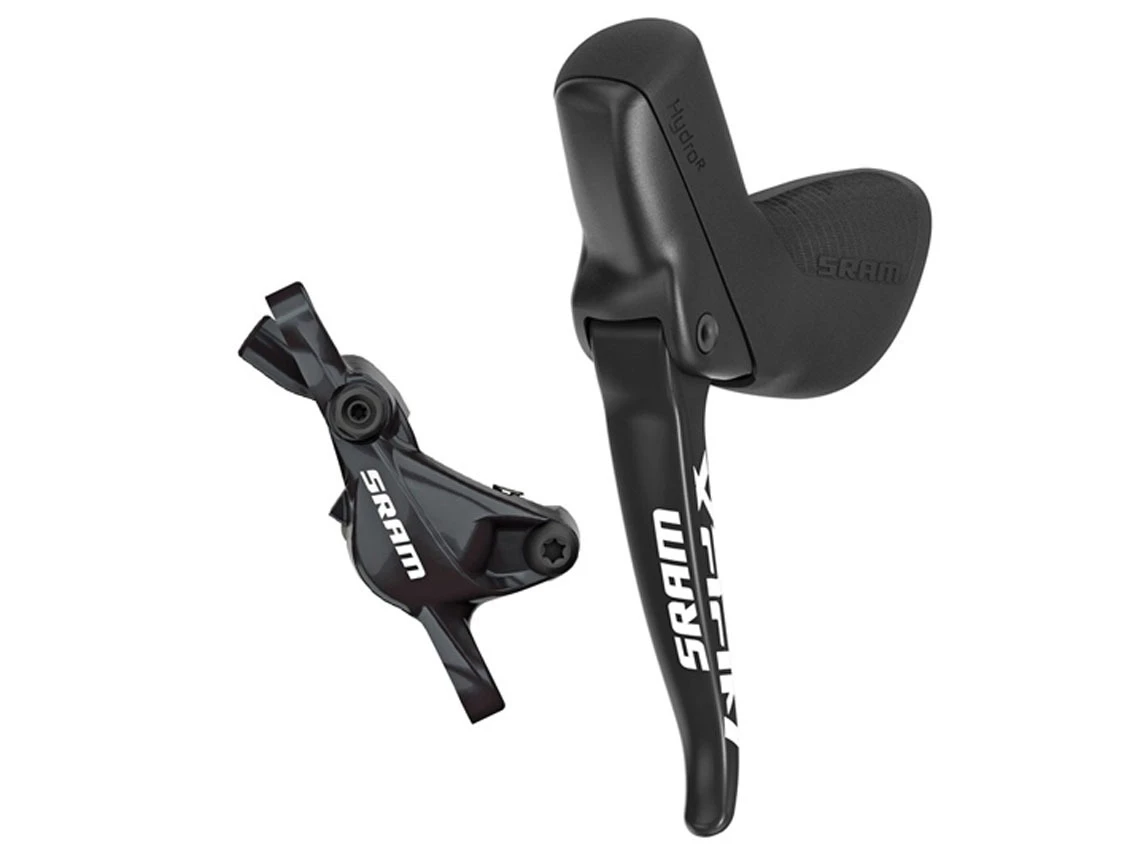

SRAM Apex 1 HRD Brake Control w/Direct Mount Caliper

Drop bar or flat bar, dirt or pavement, Apex 1 is ready to answer the call of the road with hydraulic disc brakes and the simple, quiet, easy to use, and very secure drivetrain – SRAM 1x.

Apex 1 achieves each of these superlatives while delivering artful design at an unrivalled value.

The secret to great fun on any ride is confident and secure braking. Letting it rip where you want, knowing that you can stop when you want. Enter Apex 1 HYDROR. Using SRAM’s proven HYDROR braking system, Apex 1 delivers quiet confidence on every ride.

Features

Left brake lever with front disc brake.

SRAM Road ExactActuation 11-speed compatible.

Uses DOT 5.1 brake fluid.

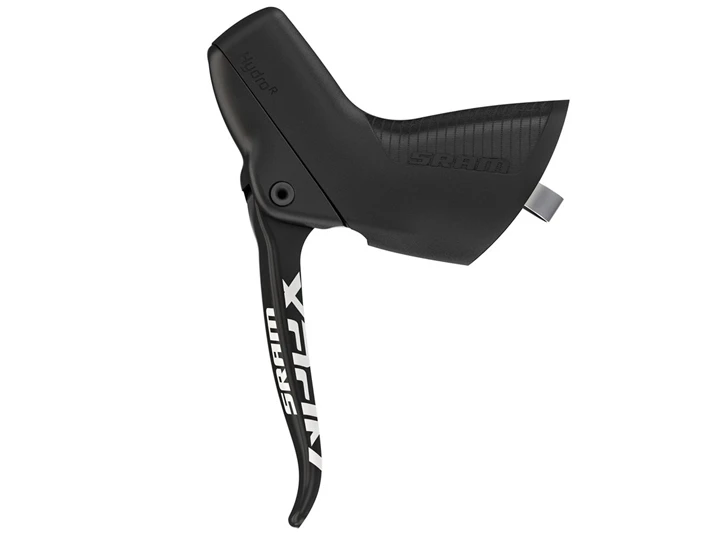

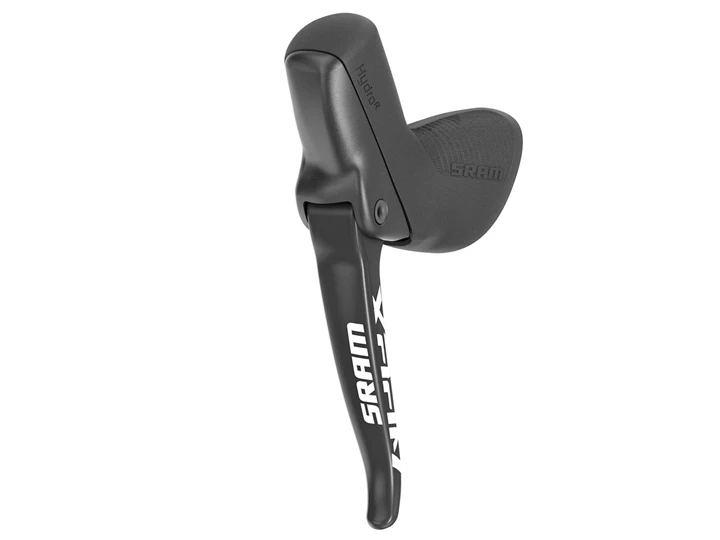

Lever body design offers excellent finger wrap, comfort and control.

Easily converts between 160mm and 140mm rotors with adaptor brackets.

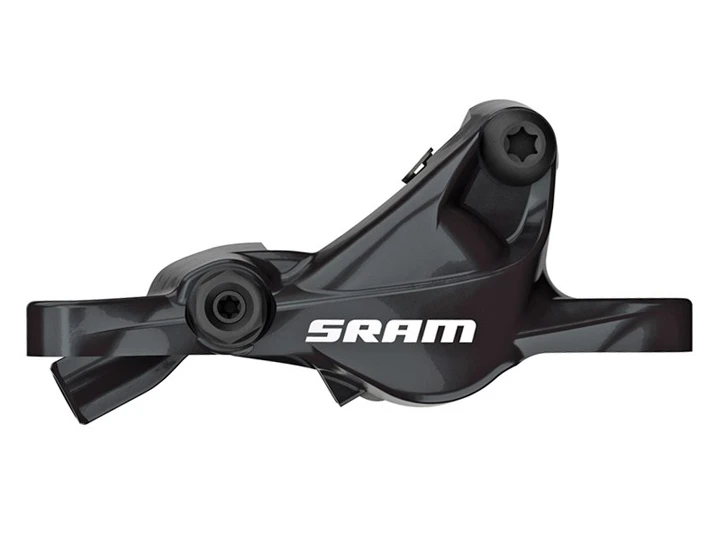

Forged aluminum disc caliper with steel-backed organic pads and steel hardware.

Two piston hydraulic caliper.

Technologies

Reach Adjust – Brake lever fit and feel is a personal thing. Riders have individual positioning preferences, as well as unique hand sizes and finger lengths. Reach Adjust makes it easy to adjust your lever for maximum one-finger control for everyone.
DOT 5.1 – Heat is an enemy of any brake system, so advancements in heat management, mean advancements in your ride. You see, SRAM found that in their systems DOT 5.1 takes almost 3 times longer to boil than DOT 4, thus allowing flawless fade-free performance in even more extreme conditions.

Exact Actuation – When they launched their road technology from scratch they reapplied their MTB proven SRAM 1:1 actuation ratio (shifter cable travel : derailleur movement) for 10 speed rear shifting. EA helps to simplify/stabilize the uneasy act of balancing rear derailleur hanger design, tight cog spacing and exact cable tension. The result: the easiest index shifting system to set up and it stays that way.
Specifications

Left Front – 950mm
Material: Brake Lever: Aluminum

Brake Caliper: Aluminum

Hardware: Steel

Weight: approx. 344g (manufacturer’s specs)

Fitting for FW/RW: VR

Disc: Brake Disc not included in delivery!

Brake Caliper: Front, Post Mount

Braking Pads: Organic

Brake Hose: 950 mm

Brake Lever: links

Brake Fluid: DOT 5.1
Left Rear – 1800mm

Material: Brake lever: aluminum

brake caliper: aluminum

hardware: steel

Weight: approx. 344 gram (manufacturer’s specs)

Fitting for FW/RW: HR

Disc: brake disc not included in delivery!

Brake caliper: rear, Post Mount

Braking pads: organic

Brake hose: 1800 mm

Brake lever: links

Brake fluid: DOT 5.1

What’s in the Box?

Left – Front
Apex 1 hydraulic brake lever, brake hose 950 mm, front brake caliper

without rotor & bracket
Left- Rear

Apex 1 hydraulic brake lever, brake hose 1800 mm, rear brake caliper

without rotor & bracket
